Catalog Number | WAU38YREX | WAU310YREX | WAU312YREX |
---|---|---|---|
IRP Model No. | 424-0100 | 424-0101 | 424-0102 |
Cooling Capacity | 8,000 Btu/h | 10,000 Btu/h | 12,000 Btu/h |
Rated Voltage | 115 VAC / 60Hz | 115 VAC / 60Hz | 115 VAC / 60Hz |
CEER Rating | 15 | 15 | 15 |
Cooling Amps | 8.78 | 10.17 | 12 |
Refrigerant Charge – R32 (oz) | 8.82 | 9.52 | 13.4 |
Cooling Watts | 720 | 890 | 1140 |
Max dB(A) Level (Indoor/Outdoor) | 47/63.5 | 51/65 | 52/65 |
Ambient Operating Temperature | 64-109 ºF | 64-109 ºF | 64-109 ºF |
Controls | Panel / Remote / Wireless | Panel / Remote / Wireless | Panel / Remote / Wireless |
Approvals | E-Star / CSA | E-Star / CSA | E-Star / CSA |
DIGITAL CONTROL PANEL – Each portable unit has full digital display for ease of use.
Product Code | WA36YER | WA48YER | WA410YER | WA312YER | WA414YER | WA318ZREX | WA325ZREX | WA328ZRB |
---|---|---|---|---|---|---|---|---|
Cooling Capacity | 6000 | 8000 | 10200 | 12000 | 14300 | 17,700/18,000 | 24,700/25,000 | 27,600/28,000 |
Rated Voltage | 115 | 115 | 115 | 115 | 115 | 208 / 230 | 208 / 230 | 208 /230 |
EER Rating | 12.3 | 12.1 | 12.1 | 12.1 | 11.9 | 11.8 | 10.3 | 9.4 |
Max Air Flow (CFM) | 177 | 224 | 288 | 294 | 430 | 363 | 461 | 461 |
Frequency/Cycle | 60 HZ | 60 HZ | 60 HZ | 60 HZ | 60 HZ | 60 HZ | 60 HZ | 60 HZ |
Power Cord Rating (amps) | 10 | 13 | 13 | 15A | 15A | 15A | 20A | 30A |
Power Cord Length (ft) | 6 | 6 | 6 | 6 | 5.2 | 6.5 | 6.5 | 6.5 |
Refrigerant Charge (oz.) | R 32 -10.05 | R410a -16.2 | R410a - 20.46 | R32 - 18.7 | R410A | R32 | R32 | R32 |
Max dbA Level (Indoor/Outdoor) | 66/71 | 69/72 | 69/77 | 69/77 | 31.75 | 24.69 | 29.28 | 31.04 |
Ambient Operating Temperature | 64-109 °F | 64-109 °F | 64-109 °F | 64-109 °F | 64-109 °F | 64-109 °F | 64 - 109 °F | 64 - 109 °F |
Unit Width | 18.6" | 20.9” | 21.3” | 21.3” | 23.62” | 23.6” | 26.5” | 26.5” |
Unit Depth | 15.7" | 15.8” | 21.5” | 21.5” | 25.98” | 25.4” | 26.5” | 26.5” |
Unit Height | 12.8" | 12.8” | 15.7” | 15.7” | 17.71” | 17.9” | 18.6” | 18.6” |
Window Width Opening | 22”-36” | 22”-36” | 24.4”-38.4” | 24" - 40" | 29”-41” | 28-40.5” | 31-42” | 31-42” |
N.W. /G.W. (Lbs) | 46.3/52.9 | 52.9/59.5 | 66.1/73.9 | 70.5/79.4 | 105.6 / 116.6 | 117/132.7 | 130.3/148.8 | 136.7/154.3 |
Energy Star | Yes | Yes | Yes | Yes | Yes | Yes | Yes | CULus |
Product Code | WH48YRC | WH412ZRB | WH418ZRC | WH425ZRC |
---|---|---|---|---|
BTU Cooling | 8000 | 11,600 / 12,000 | 18,200 / 18,500 | 24,700/25,000 |
BTU Heating | 3500 | 8,500/11,000 | 13,000 / 16,000 | 13,000/16,300 |
EER | 10.9 | 10.9 | 10.7 | 9.4 |
Dehumidification (pints/hour) | 1.6 | 2.5 | 3.8 | 6.3 |
Airflow (CFM) | 642 / 563 / 482 | 696 / 633 / 553 | 446/388/329 | 523/485/445 |
Voltage | 115 | 208 / 230 | 208 / 230 | 208 / 230 |
Frequency / Cycle | 60 HZ | 60 HZ | 60 HZ | 60 HZ |
Plug Type / Nema # | 5-15P | 6-20P | 6-30P | 6-30P |
Power Cord Rating/ amps | 15 | 20 | 30 | 30 |
Power Cord Length | 96 | 69 | 78 | 84 |
Refrigerant | R410A | R410A | R410A | R410A |
Refrigerant Charge/ Oz. | 13.4 | 22.22 | 28.92 | 34.22 |
Operating Range | 64 - 109 °F | 64 - 109 °F | 64 - 109 °F | 64 - 109 °F |
Cabinet Size/ inches (W/D/H) | 22.6/23/16.1 | 22.6/23/16.1 | 23.9/25.4/17.9 | 26.5/26.5/18.6 |
Window Opening Width (min / max) | 26.8” - 36” | 26.8” - 36” | 26.5 - 40.5” | 31 - 42” |
Thru. Wall Max. Thickness (Inches) | 6.1” | 6.1” | 8” | 10” |
N.W. / G.W lbs. | 75.8 / 87.3 | 83.8 / 94.8 | 118.4/133.4 | 136.5/155.6 |
Approvals | cULus | cULus | cULus | cULus |
Chassis Slide Out | Yes | Yes | Yes | Yes |

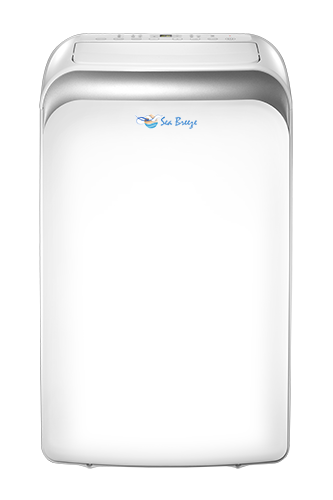

The Sea Breeze Plus 12,000 BTU hose-in-hose portable air conditioner provides exceptional cooling performance, delivering twice the cooling power when compared to traditional portable air conditioners. Its hose-in-hose design effectively retains cool air within the space, while simultaneously pushing out hot air and cycling fresh air back into the room. This ensures that the room remains comfortable, cool, and fresh at all times.
Product Code | PAS412MSB | PAS414MSB | PAS414HPMB |
---|---|---|---|
Description | Single Pipe | Single Pipe | Single Pipe |
Cooling Capacity | 12000 BTU/h | 13500 BTU/h | 13500 BTU/h |
Heating Capacity | N/A | N/A | 11000 BTU/h |
Rated Voltage | 115 VAC | 115 VAC | 115 VAC |
Rated Frequency | 60 HZ | 60 HZ | 60 HZ |
Rated Cooling Current | 11.5 A | 11.9 A | 11.9 A |
EER | 6.9 | 7.9 | 7.8 |
Refrigerant/oz | R32 / 9.17 oz. | R32 / 14.81 oz. | R32 / 14.81 oz. |
Weight (net wt) | 62 LBS | 76.7 LBS | 78.7 LBS |
Unit Dimensions (W/D/H) | 17.9" x 14.4" x 27.6" | 18.4" x 30.1" x 15.6" | 18.4" x 30.1" x 15.6" |
Breaker Size | 20 A | 20 A | 20 A |
LCDI Plug | NEMA5-15P | NEMA5-15P | NEMA5-15P |
The Sea Breeze Plus Cube features a unique lift-and-twist design that provides unparalleled flexibility for users. In its expanded form, the unit boasts up to three times more water tank capacity than traditional dehumidifiers, allowing for longer run times without the need for frequent emptying. Alternatively, in nested form, the unit is half the size, making it perfect for compact storage. Its innovative design also allows users to detach the unit from the bucket and place it over a drain or sink, offering unmatched convenience and flexibility. With its “set it and forget it” functionality, the Sea Breeze Plus Cube provides an easy-to-use, hassle-free solution to your dehumidification needs.
• WiFi Compatible with Digital Controls
• Auto Restart/ Reset / Modes: Continuous, Standard, MAX, Dryer mode
• Adjustable in 5% increments
• Illuminated display On/Off
• Available in 35 and 50 pint capacities
• Energy Star Rated / CSA rated to UL standards
Product Code | DH450SMB | DH450SMPB | DH460SMPB |
---|---|---|---|
Rated Voltage | 115 VAC | 115 VAC | 115 VAC |
Rated Frequency | 60 Hz | 60 Hz | 60 Hz |
Rated Current A | 7.8 | 7.8 | 7 |
Rated Input | 515 W | 515 W | 420 W |
Refrigerant | R410A | R410A | R410A |
Weight (net wt) lbs | 42.11 | 42.77 | 58.2 |
Dehumidifying Volume | 50 pts/day | 50 pts/day | 60 pts/day |
HP.PSIG | 540 PSI | 540 PSI | 540 PSI |
LP.PSIG | 300 PSI | 300 PSI | 300 PSI |
Tank Size | 1.6 gal | 1.6 gal | 2.6 gal |
Includes Pump | No | Yes | Yes |
